HDPE Pipes for Geothermal Applications
Gamson India Pvt. Ltd. manufactures and supplies high-quality HDPE Pipes for Geothermal Applications designed for efficient heat transfer and long-term performance. Manufactured at our facility in Sonipat, Haryana, these HDPE Pipes are supplied across Delhi NCR and neighboring states including Punjab, Haryana, Uttar Pradesh, Uttarakhand, Himachal Pradesh, Himachal Pradesh, and Jammu & Kashmir. Due to their excellent thermal stability, flexibility, and corrosion resistance, HDPE Pipes have become a preferred choice for geothermal heating and cooling systems, ground source heat pumps, and various energy transfer applications.
Geothermal systems utilize the relatively constant temperature present beneath the earth's surface to provide energy-efficient heating and cooling. HDPE Pipes are used to create underground loop networks through which water or water-glycol mixtures circulate to exchange heat with the surrounding soil. Gamson HDPE Pipes are the most appropriate choice for geothermal systems due to their superior quality and ability to withstand high-pressure fluids. Our HDPE Pipes are durable and long lasting with an expected service lifespan of 50+ years. These pipes provide a reliable solution for both horizontal and vertical geothermal loop installations.
Gamson HDPE Pipes for geothermal applications are manufactured using premium quality virgin-grade High-Density Polyethylene (HDPE) raw materials and are available in various sizes and pressure ratings. Pipes up to 125 mm O.D. are generally supplied in coil form, enabling long continuous installations with fewer joints, whereas larger diameters up to 1200 mm O.D. are available in straight lengths. The excellent flexibility and fusion-welded jointing capability of HDPE Pipes result in a homogeneous piping system. These pipes can be joined easily using compression, mechanical, butt fusion or electrofusion jointing methods.
Key Features
- Zero Corrosion & Scaling: Unlike metallic geothermal pipes, HDPE is immune to the minerals and chemicals found in groundwater, ensuring the internal diameter remains smooth for life.
- Lightweight & Long Lengths: Supplied in long coils to minimize joints, making them easier to drop into deep vertical boreholes.
- High Pressure Surge Resistance: Capable of handling the pressure fluctuations and water hammer effects common in closed-loop pumping systems.
- High Impact Strength: These pipes exhibit excellent toughness and maintain their mechanical properties even under demanding operating conditions.
Technical Specifications
| Material Grade | PE 63, PE 80 and PE 100 |
|---|---|
| Standard Dimension Ratio (SDR) | SDR 11, SDR 13.6, SDR 17 |
| Diameter Range (OD) | 20 MM to 125 MM (Coiled); up to 1200 MM (Straight) |
| Temperature Range | -40°C to +60°C |
| Pressure Rating | PN 2 to PN 20 |
| Expected Lifespan | 50 years under operating conditions |
| Standard Compliance | IS 4984:2016, ISO 4427, or any other applicable standard |
Common Applications
- Ground Source Heat Pump Systems: HDPE Pipes are extensively used in closed-loop geothermal systems for transferring heat between the ground and heat pump units used for heating and cooling buildings.
- Horizontal Geothermal Loop Installations: The flexibility and availability of HDPE Pipes in long continuous lengths make them suitable for horizontal ground loop systems installed in trenches.

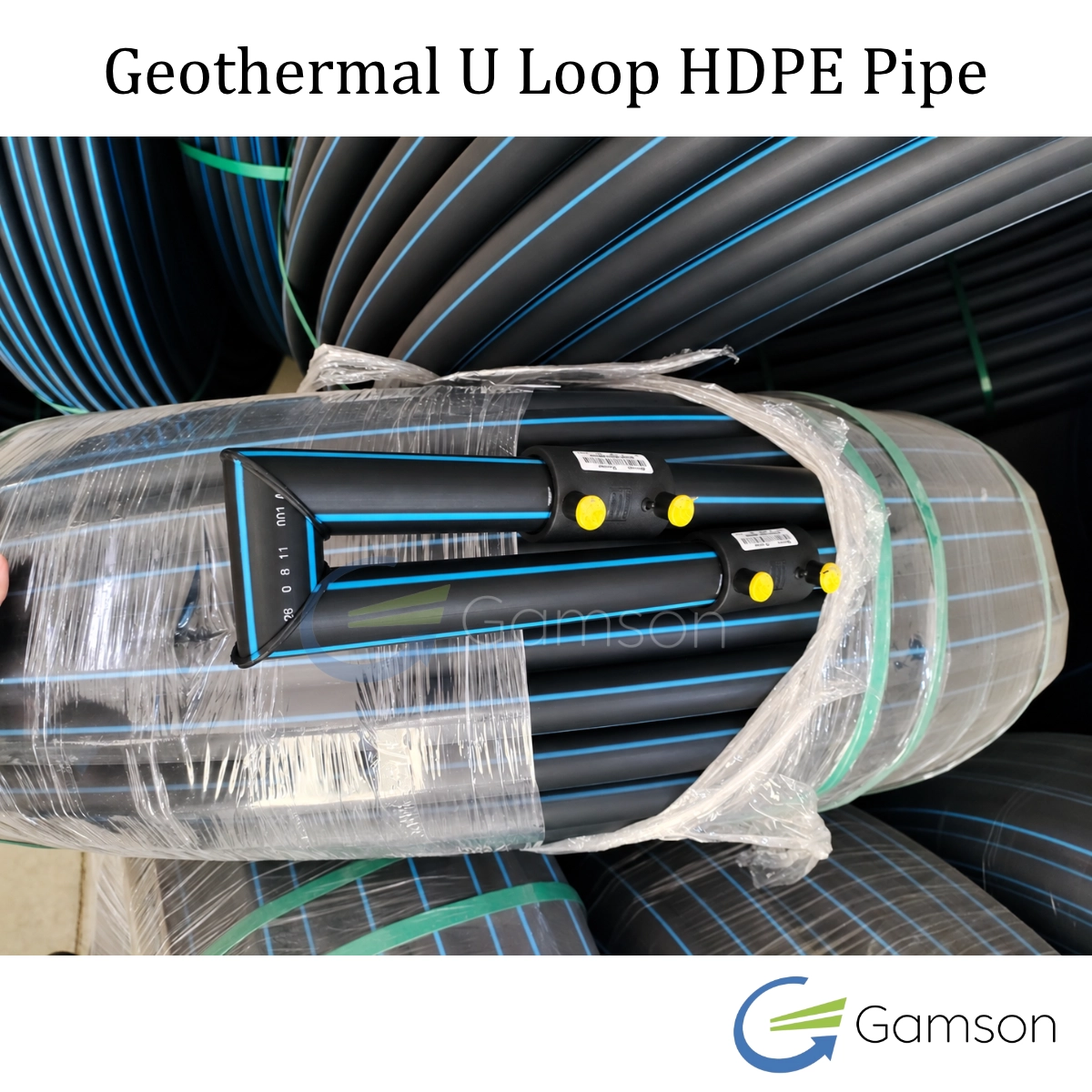

- Vertical Borehole Heat Exchangers: HDPE Pipes are employed in vertical geothermal wells where they circulate heat transfer fluids and provide long-term reliability under buried conditions.
- District Heating and Cooling Networks: Geothermal energy projects and centralized heating systems utilize HDPE Pipes for transporting heat transfer fluids efficiently and safely.
