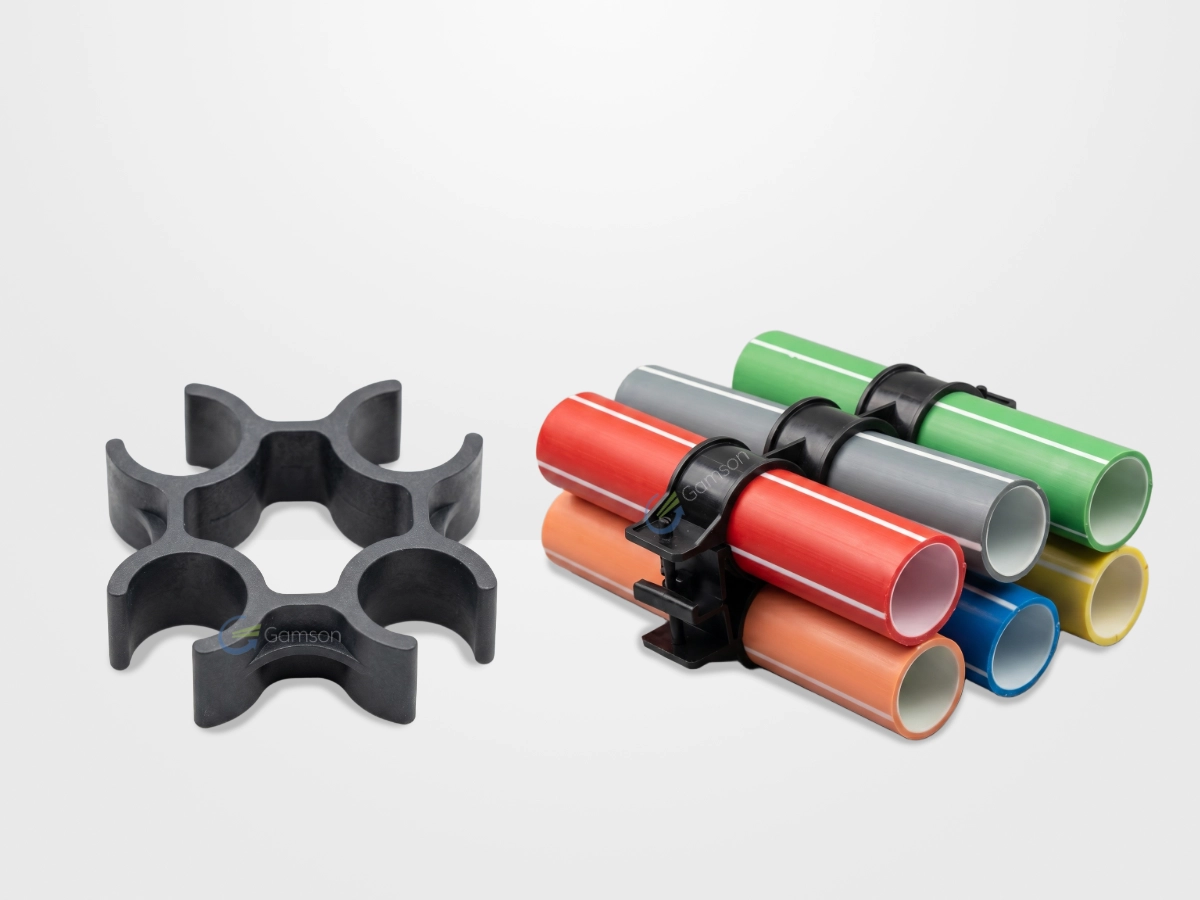

Duct Spacer
Gamson manufactures high-durability Duct Spacers (also known as conduit spacers or underground markers), designed to provide organized and stable support for multiple duct banks in underground utility installations. These spacers ensure precise horizontal and vertical separation between HDPE pipes, which is critical for preventing heat buildup in electrical lines and maintaining structural integrity during concrete encasement or soil backfilling.
Key Features
- Consistent Alignment: Maintains exact spacing between ducts, ensuring that the entire utility run remains straight and organized according to engineering specifications.
- Snap-Lock Design: Features a user-friendly interlocking mechanism that allows spacers to be quickly connected side-by-side or stacked vertically without the need for specialized tools.
- Enhanced Load Distribution: Engineered with a wide base and high-strength ribs to support the weight of the ducts and the pressure of the backfill, preventing pipe deformation.
- Superior Flow for Encasement: Designed with large open spaces to allow for the free flow of concrete or grout during concrete encasement, eliminating voids and air pockets.
- Chemical & Corrosion Resistance: Molded from heavy-duty, non-conductive plastic that is immune to soil acids, moisture, and electrolytic corrosion.
- Reduced Installation Time: The modular design allows for rapid assembly on-site, significantly reducing labor costs compared to manual spacing methods.
Technical Specifications
| Material | Polypropylene with UV Stabalizer |
|---|---|
| Duct Compatibility | 32 mm, 40 mm, 50 mm, 63 mm, and 110 mm OD |
| Configuration | Available in 2-way, 3-way, 4-way, and modular units |
| Spacing Gap | Standard 1-inch to 3-inch separation (Customizable) |
| Color | Black or as per requirement |
| Environmental Stability | UV-resistant and suitable for direct burial |
| Compressive Strength | High-load bearing capacity for deep trenching |
Primary Applications
- Power & Utility Distribution: Organizing high-voltage electrical conduits to ensure proper heat dissipation between cables.
- Telecommunications: Supporting multiple PLB HDPE ducts for fiber optic backbones in urban trenches.
- Concrete Encasement: Holding ducts in place within duct banks before pouring concrete for added protection under roads or railways.
- Bridge & Highway Crossings: Securing conduit runs along structural spans where organized layout is essential.
- Renewable Energy Projects: Managing cable runs in solar and wind farms from the collection point to the substation.
